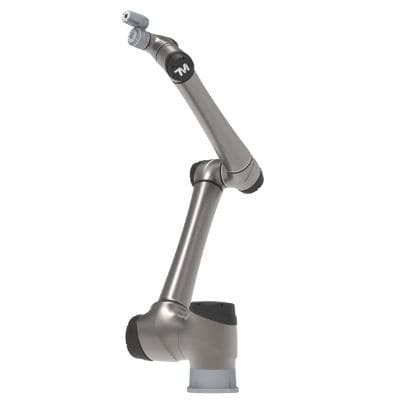

Articulated robot TM25S
6-axispackagingpick-and-place

articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Function
packaging, pick-and-place, palletizing, machine tending
Application domain
for heavy loads
Protection level
IP54
Other characteristics
safety
Payload

25 kg
(55.116 lb)

Reach

1,902 mm
(74.88 in)

Repeatability

0.05 mm
(0.002 in)

Speed

5.2 m/s
(17.1 ft/s)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Weight

80.6 kg
(177.7 lb)

Description

TM25S is a heavy payload cobot from TM AI Cobot S series. Enhanced your production efficiency and reduce the cycle time of your production line. It finds wide applications in various tasks such as massive pick & place tasks, machine tending, high-volume packaging, palletizing and more. Upgrade to a New Level of Possibilities Faster More Precise Flexible More Safety Items Intelligence Amplified, Customization Redefined AI Vision TMflow 2 TMcraft FASTER 25% faster cycle time! • The joint speed of the 6th axis is increased from 225 °/s to 450 °/s • Reduces the cycle time of your production line by 25%* for improved efficiency MORE PRECISE Best cobot repeatability of ±0.03 mm! • Delivers up to a 70%* increase in repeatability accuracy of ±0.03 mm *In comparison with the previous version FLEXIBLE Brand New Robot Stick The enhanced Robot Stick with a 3-position Enabling Switch and RESET button for easier and safer operation. Use it alone to control the robot with monitor, keyboard and mouse. Attachable TM Screen Experience versatility in teaching, debugging, and control by combining the Robot Stick with an optional TM Screen. Seamlessly tackle on-site debugging and unlock a wide range of capabilities with this powerful combination.
