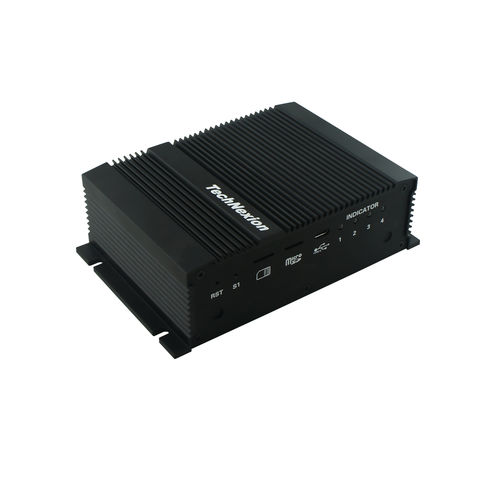

Box PC TEK3-IMX6
wall-mountedVESA mountingNXP i.MX6

box PC
box PC
box PC
box PC
Add to favorites
Compare this product


Characteristics

Type
box
Configuration
wall-mounted, VESA mounting
Processor
NXP i.MX6
Ports
USB 2.0, HDMI, VGA, RS-232, RS-485, serial port, gigabit Ethernet, RJ45, CAN bus, micro SD card, SIM card, WiFi, USB, Ethernet, Bluetooth
Data storage
eMMC 4GB
Size
compact
Domain
industrial, automation, for automation applications, for robotic applications
Other characteristics
fanless, wireless, modular, PoE, low-consumption

Description

The TEK3-IMX6 is a scalable, high-performance fanless box PC based on a single/dual/quad core ARM Cortex-A9 NXP i.MX6 series processor. It features internal M.2 and Mini-PCIe slots (with SIM card) for connectivity expansion modules. TEK SERIES The TEK series is a fanless industrial computer based on ARM or x86 technology enclosed in a compact, fully aluminum ruggerized enclosure, incorporating a cable-less design having all I/O connectors on the main SBC. This series is a perfect choice for controlling your versatile end-equipment or connecting them up to the cloud. POWER AND NETWORKING EXPANSION MODULE INTERFACE This series comes with a Power and Networking Expansion Module that not only adopts to the end-user application power requirements but also adds networking and control I/O such as SPI, I2C or GPIO. A range of off-the-shelf modules is available with a single 12V DC, 24V DC input or a 10-30V DC wide power input. In addition, modules are available with Power-over-Ethernet and smart network switching capabilities. OPEN SOURCE SOFTWARE All TechNexion Fanless Computing PCs come with open source code and binary images that are easily accessible, not hidden behind sign up pages or passwords. Main Features: ARM Cortex A9 Fanless Box PC NXP i.MX6 Solo/DualLite/Dual/QuadCore Memory: 4GB DDR3. Storage: eMMC (4GB Default), micro SD card slot and M.2 SSD (optional). Internal M.2 and Mini-PCIe slots (with SIM card) for connectivity expansion modules. Compatible with TechNexion expansion boards for additional input and outputs. Linux, Android, Ubuntu and Yocto open sourced code.
