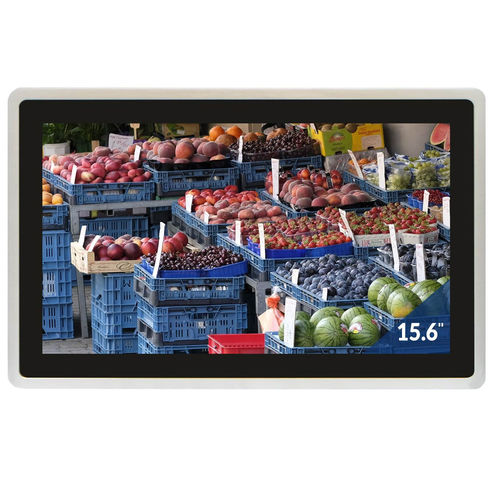

HMI with touch screen TEP-1560-BSW

panel-mountwall-mountVESA mounting

TEP-1560-BSW The TEP-1560-IMX6 is a modular, scalable, fanless HMI based on a quad core Intel x86 Braswell Atom x5-E8000 / Pentium N3710 SoC processor, featuring 15.6 inch Projective Capacitive (multitouch) high resolution (1366 x 768) bright (300 nits) widescreen LCD with LED backlight. TEP SERIES The TEP series human-machine interface (HMI) panel computing devices are based on ARM or x86 technology enclosed in an aluminium enclosure featuring a cable-less design having all I/O connectors on the main SBC or brought towards the Power Networking or Automation I/O Expansion Modules by using a high-speed board-to-board connector. The TEP Series features multiple internal mini PCIe sockets and M.2 expansion slots for SSD, 3G, LTE and Wi-Fi expansion modules. POWER AND NETWORKING EXPANSION MODULE INTERFACE Some models of this series come with a Power and Networking Expansion Module that not only adopts to the end-user application power requirements but also adds networking and control I/O such as SPI, I2C or GPIO. A range of off-the-shelf modules is available with a single 12V DC, 24V DC input or a 10-30V DC wide power input. In addition, modules are available with Power-over-Ethernet and smart network switching capabilities. OPEN SOURCE SOFTWARE All TechNexion Panel Computing devices come with open source code and binary images that are easily accessible, not hidden behind sign up pages or passwords.
