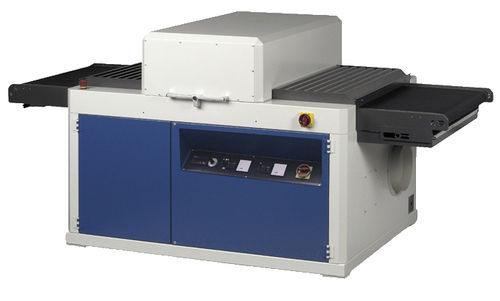

UV dryer AKTIPRINT S
continuousfor woodcooler

UV dryer - AKTIPRINT S  - Technigraf  GmbH - continuous / for wood / cooler
UV dryer - AKTIPRINT S  - Technigraf  GmbH - continuous / for wood / cooler
Add to favorites
Compare this product


Characteristics

Technology
UV
Batch/continuous
continuous
Applications
for wood
Associated function
cooler
Other characteristics
with belt conveyor

Description

Our AKTIPRINT S UV STANDARD DRYER is a universal, fixed-position, continuous throughput unit. It is used to cure UV inks, UV adhesives, coatings and solder resists for medium and large format printing applications. The AKTIPRINT S UV STANDARD DRYER is suitable for use with all commercially available materials such as paper, cardboard, metal, plastics, glass and wood.This unit is available with either 1, 2, or 3 UV (Hg) lamps. The following maximum UV lamp outputs are available: Up to 130 cm format = max. 120 W/cm = 140 cm up to 160 cm format = max. 100 W/cm = 160 cm format = max. 80 W/cm Lamp output can be switched from 50 to 100%. The professional version of the AKTIPRINT S UV dryer: This air-cooled system is equipped with sturdy, focusing aluminum half-shell reflectors, lamp current displays as well as a digital speed display, a control panel on the unit, an operating hour counter, a PTFE conveyor belt, a vacuum suction system, an ozone exhaust, a high-volume air cooling system with temperature control, light protection shielding on both sides of the lamp housing and stray field transformer(s). The conveyor belt speed is continuously adjustable from 5 to 35 m/min. In the standard version, material is transported from right to left. Upon request, we can also configure the material transport from left to right.
