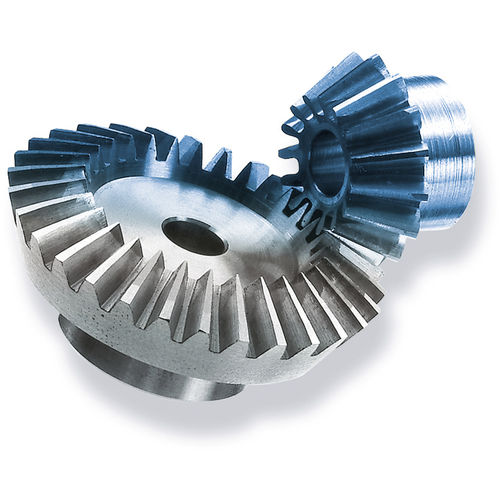

Bevel gear K series

straight-toothedhubstainless steel

Bevel Gears Properties • Ratios 1:1 / 1.25:1 / 1.5:1 / 2:1 / 2.5:1 / 3:1 / 3.5:1 / 4:1 / 5:1. • Modules 0.5 / 1 / 1.5 / 2 / 3 / 3.5 / 4 • Materials: steel, stainless steel, plastic polyacetal (POM) and polyketone (refer to page V 019, injection moulded spur gears, for properties of polyketone) • Straight geared and helical geared • In standard version without heat treatment and smooth borehole • We also offer reworking as keyways, boreholes for set screws, etc., or customized bevel gears completely manufactured according to your drawings Advantages • Energy-efficient transmission of rotational motion at a 90° angle • Reversible: Force and speed can be transmitted in both directions (reduced or increased ratios) • Distribution of power flow by combining a driven bevel gear with 2 to 4 bevel gears at the output is possible • Rotation selection of the output shaft, depending on the mounting position of the bevel gear at the output, either in same or opposite direction • Low-loss torque transmission by rolling friction at efficiency level of about 90% • Ratios of up to 5: 1 allow efficient torque increase • Our steel bevel gears, with gearing quality 8f24, allow for high positioning accuracy and low backlash • Helical geared bevel gears transmit higher torques than straight geared variants, since there are more teeth meshed simultaneously
