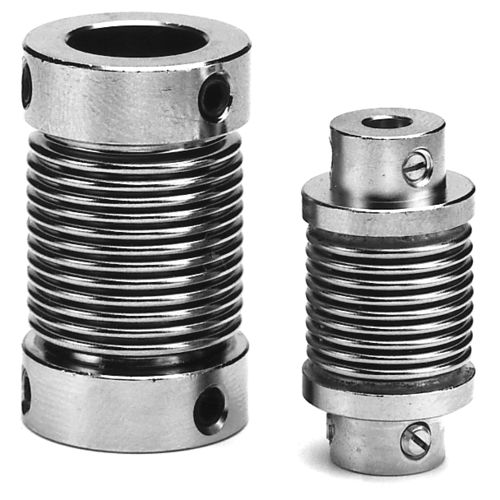

Bellows coupling BK seriestransmissionshaftlarge
Add to favorites
Compare this product
Characteristics
- Type
- bellows
- Product applications
- transmission, shaft
- Construction
- large
- Performance
- backlash-free
- Installation system
- flange
- Torque
Max.: 500 Nm
(368.7811 ft.lb)Min.: 0 Nm
(0 ft.lb)- Rotational speed
Max.: 10,000 rpm
(62,831.85 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
Bellow Coupling
Bellow couplings enable backlash-free angularly aligned transmission of rotary movements. Long models for large shaft displacements and optimum compensation of misalignment. Vibration damping, high torsional stiffness, low restoring forces. Mounting with adjusting screws, clamping flange or clamping hub.
MORE INFO
material of flange
brass nickelplated
aluminium anodized
material of bellow
bronze CuSn6 nickelplated
stainless steel
nickel
spring steel stainless
