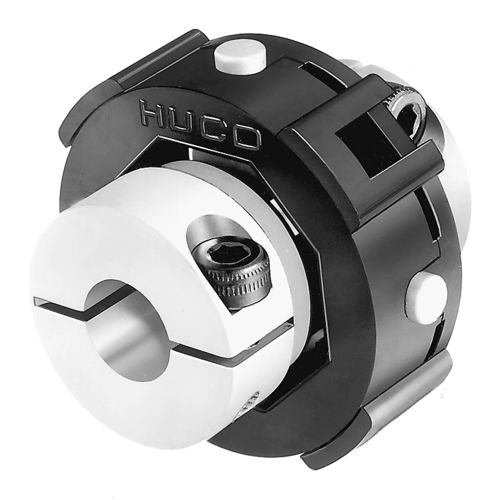

Flexible coupling UNI-LAT® series

shaftsflange

Unique multi-purpose coupling for lighter applications, with large angular and radial compensation properties. A special feature of this coupling is the resistance to axial movements. This makes it suitable for light tension and pressure requirements and for fixing of shafts which are not axially mounted. The coupling is very suitable for reversing operations and tolerates torsional and axial impact loads. Mounting with adjusting screw or clamping flange. material of hub and clamping rings brass aluminium alloy material of torque rings: acetal - polymeric diameter: 18 – 41,4 mm Ølength: 14,2 – 38,1 mmbore holes: 3 – 16 mm Ø
