AC servomotor TAC series
400 V230 V48 V

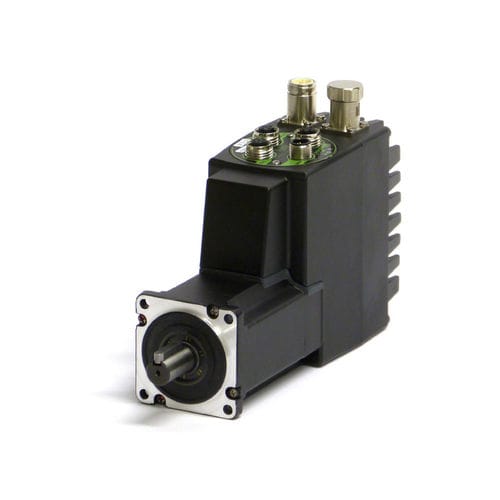

AC servomotor - TAC series - Technische Antriebselemente GmbH - 400 V / 230 V / 48 V
AC servomotor - TAC series - Technische Antriebselemente GmbH - 400 V / 230 V / 48 V
AC servomotor - TAC series - Technische Antriebselemente GmbH - 400 V / 230 V / 48 V - image - 2
AC servomotor - TAC series - Technische Antriebselemente GmbH - 400 V / 230 V / 48 V - image - 3
AC servomotor - TAC series - Technische Antriebselemente GmbH - 400 V / 230 V / 48 V - image - 4
AC servomotor - TAC series - Technische Antriebselemente GmbH - 400 V / 230 V / 48 V - image - 5
AC servomotor - TAC series - Technische Antriebselemente GmbH - 400 V / 230 V / 48 V - image - 6
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Voltage
400 V, 230 V, 48 V, 12 V
Protection class
IP67, IP55
Other characteristics
with integrated motion controller
Power

Min.: 46 W
(0.063 hp)

Max.: 3,000 W
(4.079 hp)

Torque

3.8 Nm
(2.8027 ft.lb)

Rotational speed

300 rpm
(1,884.96 rad.min-1)

Description

The conception of the TAC servo motors pursues the goal to integrate most of the components into the motor housing whilst being as flexible as possible. TAC servo motors offer: motor driver integrated into the motor housing an expansion module for communication with control cable or bus system can be selected according to the existing PLC and integrated into the motor housing. Expansion modules are available for I/O and all common bus systems. Options: Nano PLC as expansion module for stand-alone solutions allowing a completely independent operation of the TAC motor. This Nano PLC can be integrated into higher-ranking control units as well. external or integrated brakes absolute value transmitter Bluetooth, IEEE802.154 or wireless expansion modules High speed multi-axis modules for faster communication
