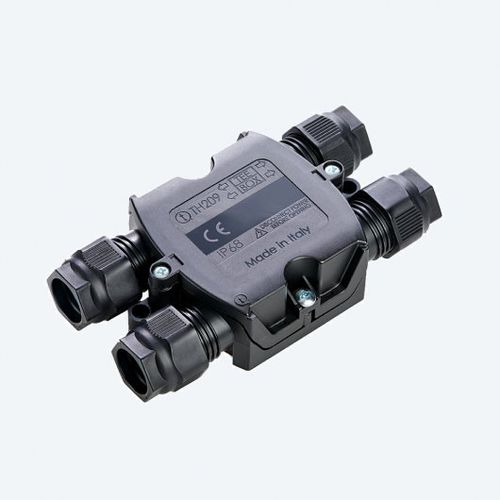

Built-in junction box THP.209.A3A

IP68plasticDC

GENERAL INFORMATION Type of installation Joint connector (re-usable/re-accessible) Product configuration Junction connector *Terminal block included in the kit Colour Black (Plastic components) - Techno green (Rubber components) Overall dimensions (mm) 121.0 x 64.5 x 28.0 ELECTRIC DATA No. connected cables 4 Circuit wiring diagram Power/Signal Current rating (AC/DC) 16A Voltage rating (AC/DC) 450V AC No. poles 3 Marking L-N-E Terminations Piercing screw *Terminal block with double connection, the piercing solution is ideal for PVC, Neoprene and FEP cables Terminations Thread/Tightening torque M3 - max. 1.0 Nm CONNECTION DATA Multi-stranded conductor cross-section without ferrule MIN (mm²) 0.50 Multi-stranded conductor cross-section without ferrule MAX (mm²) 1.50 Reccomended types of cable H05xxx/H07xxx Cable diameter MIN (mm) 7.00 Cable diameter MAX (mm) 13.50 Tightening torque of nut-cable gland 2.5 Nm ENVIRONMENT CONDITIONS IP rating IP68 *IP68 (5m/3h) IK rating IK08 Salt Mist Salt mist test : EN60068-2-11:2000 T marking T 85°C
