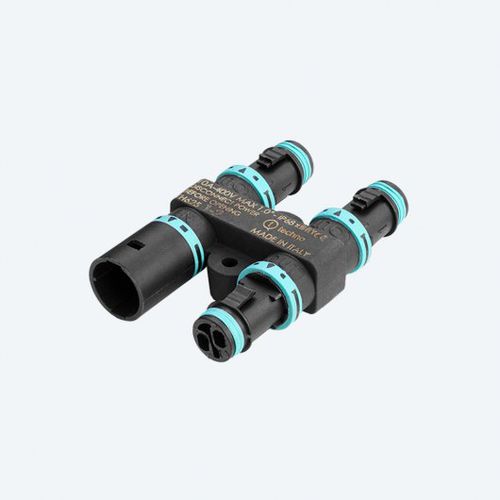

Signal distributor THH.625.A2B

IP66IP68

GENERAL INFORMATION Type of installation Plug and Socket connector Product configuration Plug and socket junction box Colour Black (Plastic components) - Techno green (Rubber components) Overall dimensions (mm) 58.8 x 39.25 x 16.39 ELECTRIC DATA No. connected cables 4 Circuit wiring diagram Power/Signal Current rating (AC/DC) 10A AC/DC Voltage rating (AC/DC) 500V AC (3V-60V DC) Impulse withstand voltage 1500V *2000V(Surge protection) No. poles 2 Marking 1-2 ENVIRONMENT CONDITIONS IP rating IP66, IP68 *IP68 (5m/1h) Salt Mist Salt mist test : EN60068-2-11:2000 Ambient temperature MIN/MAX (According to EN61984/EN60998) -40°C/+100°C Operating temperature MAX +60°C Proof Tracking Index (PTI) PTI 175 MATERIALS Exterior body TPE Connector PA66 GF UL94 V0 O Rings TPE Impulse withstand category II Pollution degree 2 Material property Halogen Free Contacts Brass
