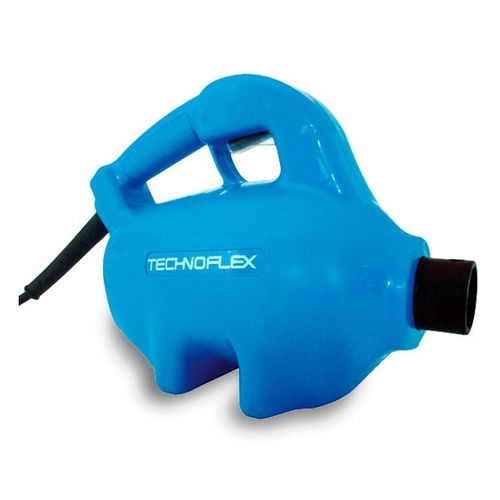

Electric vibrator Sanglagasoline enginerotaryflexible
Add to favorites
Compare this product
Characteristics
- Operation
- electric, gasoline engine
- Type
- rotary
- Product applications
- flexible
- Rotational speed
12,000 rpm, 18,000 rpm
(75,398.2 rad.min-1, 113,097.3 rad.min-1)- Power
2,300 W
(3.127 hp)
Description
Double insulated electric motor for maximum operator protection, or gasoline engine.
Minimum weight.
Great performance area and vibrating.
Long-lasting flexible shaft.
Vibrating needles that incorporate double bearings.
Quick disconnect for transmission exchange.
SINGLE PHASE ELECTRICAL 230V:
Power: 2,300 W
Voltage: 230V-50/60 Hz
Speed: 18,000 pm (empty)
outer shell: FV polyamide
ELECTRICAL SINGLE PHASE 115 V:
Power: 2,300 W
Voltage: 115 V – 50/60 Hz
Speed: 18,000 pm (empty)
outer shell: FV polyamide
HONDA GX-160 PETROL ENGINE:
Power5.5 CV
Speed12,000 rpm
outer shell: metal cage
∅ 25 mm| LENGTH 315 mm | WEIGHT 0.8 Kg | CAPACITY 9 m³ / h | PERFORMANCE AREA 25 cm | FREQUENCY 12,000 rpm
∅ 38 mm | LENGTH 455 mm | WEIGHT 2,5 Kg | CAPACITY 16 m³ / h | ACTUATION AREA 55 cm | FREQUENCY 12,000 rpm
∅ 48 mm| LENGTH 495 mm | WEIGHT 4 Kg | CAPACITY 28 m³ / h | PERFORMANCE AREA 70 cm | FREQUENCY 12,000 rpm
∅ 60 mm| LENGTH 575 mm | WEIGHT 6 Kg | CAPACITY 35 m³ / h | PERFORMANCE AREA 90 cm | FREQUENCY 12,000 rpm
