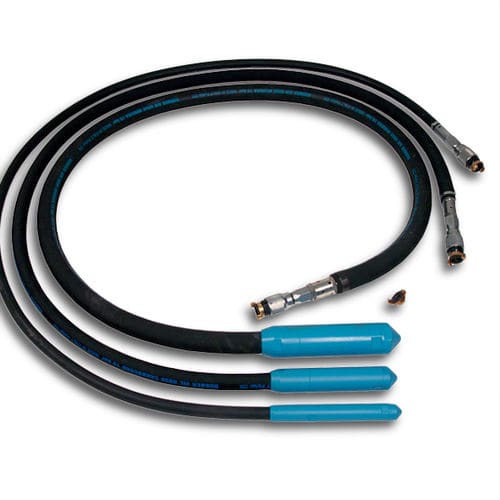

Pneumatic vibrator VNF series

linearconcrete

Maintenance-free pneumatic internal vibrators. Equipped with great power to obtain the most perfect vibrating of the concrete. The existence of a single moving part receives an antifriction treatment, reaching a resistance of 180 kg / mm² and a hardness of 900 vickers. Specially designed to work in ATEX atmospheres ALL THE MODELS: HOSE LENGTH 3 m | AIR PRESSURE 6 Kg / cm² VNF-25: ∅ NEEDLE 25 mm | NEEDLE LENGTH 220 mm | TOTAL WEIGHT 2,7 Kg | FREQUENCY 14,000 vpm | WIDTH 0.8 mm | CONSUMPTION 350 l / m | CENTRIFUGAL FORCE 750 N | PERFORMANCE 4 m³ VNF-40: ∅ NEEDLE 40 mm | NEEDLE LENGTH 310 mm | TOTAL WEIGHT 5.8 Kg | FREQUENCY 13,000 vpm | WIDTH 1.2 mm | CONSUMPTION 420 l / m | CENTRIFUGAL FORCE 1,900 N | PERFORMANCE 14 m³ VNF-50: ∅ NEEDLE 50 mm | NEEDLE LENGTH 300 mm | TOTAL WEIGHT 7.5 Kg | FREQUENCY 12,500 vpm | WIDTH 1.5 mm | CONSUMPTION 520 l / m | CENTRIFUGAL FORCE 3,200 N | PERFORMANCE 22 m VNF-58: ∅ NEEDLE 58 mm | NEEDLE LENGTH 300 mm | TOTAL WEIGHT 10 Kg | FREQUENCY 12,000 vpm | WIDTH 2 mm | CONSUMPTION 700 l / m | CENTRIFUGAL FORCE 5,000 N | PERFORMANCE 27 m³ VNF-80: ∅ NEEDLE 80 mm | NEEDLE LENGTH 350 mm | TOTAL WEIGHT 14 Kg | FREQUENCY 9,500 vpm | WIDTH 2,8 mm | CONSUMPTION 1,500 l / m | CENTRIFUGAL FORCE 9,500 N | PERFORMANCE 38 m
