Centrifugal pump GX-160

gasolinediesel enginesubmersible

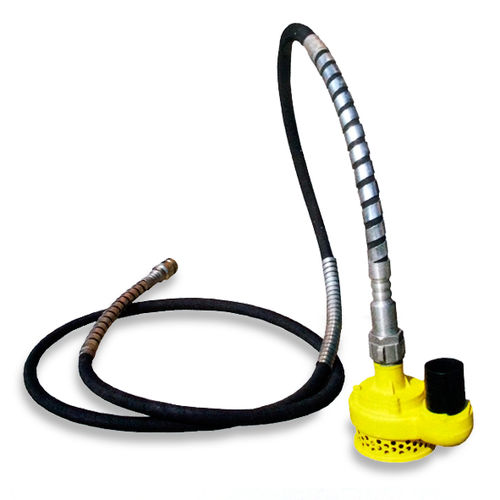

Submersible pump with flexible transmission of 6 m in length that is coupled to the EL CLÁSICO motor. The pump can be shipped singly or together with the EL CLÁSICO motor. Available versions: Gasoline Honda GX-160 4-stroke at 3,200 rpm of 5.5 Hp that weighs about 18 kg, air-cooled and protected by a metal cage. Diesel engine of 4 Hp and 3,200 rpm with a weight of 32 Kg. Quick connection system by sliding with locking handle that does not require tools for assembly. ∅ outlet tube 76.2 mm Maximum pumping 16 m Maximum pumping 75m³ / h Maximum size of aspirated impurities 10 mm Weight 6.5 Kg
