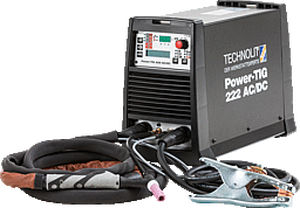

TIG welding system TIG 222

arcsemi-automaticintegrated

Mains voltage:1 x 230 V ( ±15 %) mains frequency:50 – 60 Hz Mains fuse:16 A (slow) Max. power consumption:5,9 kVA Effective power consumption:3,7 kVA Control range (TIG)5 – 220 A Control range (electrode)10 – 150 A Electrode duty cycle:35 % (40 °C) - 220 A / 18,8 V 60 % (40 °C) - 180 A / 17,2 V 100 % (40 °C) - 160 A / 16,4 V Electrode duty cycle:50 % (40 °C) - 150 A / 26,0 V 60 % (40 °C) - 140 A / 25,6 V 100 % (40 °C) - 120 A / 24,8 V switching stages:Infinitely variable Arc ignition (TIG DC):HF/Lift-ARC Arc ignition (TIG AC):HF/Lift-ARC Power factor:0,98 Open circuit voltage:67 V Reduced no-load voltage:10 V IP rating:IP 23S Electrodes:1,6 – 3,25 mm Insulation class:H (180 °C) Operating temperature:-10 to +40 °C Length:460 mm Width:230 mm Height:325 mm Weight:19 kg
