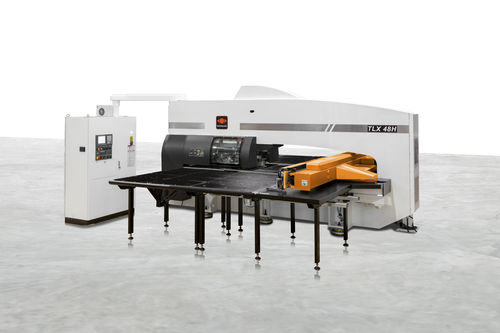

CNC punching machine TLX 48H hydraulicfor metal sheetscutting
Add to favorites
Compare this product
Characteristics
- Control
- CNC
- Drive type
- hydraulic
- Product handled
- for metal sheets
- Associated function
- punching, cutting, forming, drilling
- Other characteristics
- auto-index, turret
- Pressing force
300 kN
- X travel
2,500 mm
(98.43 in)- Y travel
Max.: 1,500 mm
(59.06 in)Min.: 1,250 mm
(49.21 in)- Plate thickness
Max.: 6 mm
(0.24 in)Min.: 1 mm
(0.04 in)6 mm
(0.24 in)
Description
The True Turret Punch Press
The TLX 48H turret is equipped with a high turret tool change system, with a loading capacity of up to 48 tools, including 4 stations with rotation from 0° to 360° degrees (auto-index).
The turret of the TLX 48H is one of the highest on the market. This ensures the best quality in machining and maximum tool durability, thanks to the ability to guide the punch with greater stability.
CNC FANUC
The TLX 48H is equipped with components (CNC, motors, drives, and console) from the world leader FANUC, ensuring unique CNC reliability. FANUC guarantees spare parts availability for 25 years and support in 108 countries thanks to its extensive branch network.
