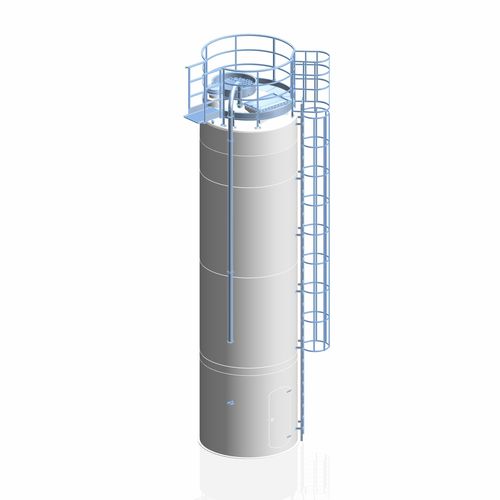

Fiberglass silo

flat bottomfor powdersbulk

•Cost effective storage of raw materials. •Reinforced fibreglass shell with high insulating power for extended storage periods. •Waterproof and resistant to atmospheric agents. •Suitable for food storage. APPLICATIONS External storage of bulk raw materials in powder or granule form. Prepared for pneumatic loading by tank truck or other dedicated loading system. ACCESSORIES •Loading by pneumatic system from tanker trucks, bags or big bags. •Monitoring of internal quantity by weighing cells and weight display. •Pressure control system. •Single or multiple extractions. •Lump breaker. •Double wall insulation with expanded polyurethane and anti-condensation system. TECHNICAL DATA •Storage capacity from 7 to 100 m3. •Available diameters 2,000mm/2,400mm/3,000mm. •Load capacity up to 25,000kg/h. •Storage of products with an apparent specific weight of up to 1.2kg/ dm3. •Compliant with food hygiene regulations (EC regulation 1935/2004). •Antistatic internal treatment according to the CEI CLC / TR 50404 Guide. •Compliant with Atex Directive 94/9 / EC. •Structural accessories in stainless steel or Fe.
