Measurement software RiGO801

for goniophotometers

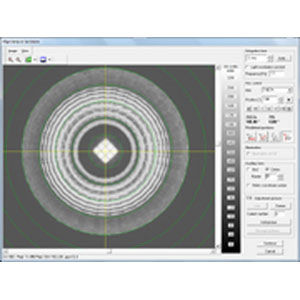

Basic software for operating the goniophotometer The measuring program RiGO801 offers the operator a comfortable setup and execution of the measurement. Features: Easy alignment of the objects to be measured by means of the measuring camera. Image grid which can be activated, and metric coordinate system Fast on-the-fly measurement Measurement of luminous intensity distributions with the camera in the case of large measurement objects in relation to the sensor distance (near-field mode) or with the photometer in the case of small objects to be measured (far-field mode) Saving in the TechnoTeam – format (.TTL), conversion into various standard formats (LDT, IES). The measurements will be evaluated using LumCAT. Angular step sizes 0.1° ... 2.5° (camera), 0.1° ... 90° (photometer) Capturing ray data, saving in the TechnoTeam – format (.TTR). Conversion into various standard formats using the Converter801 program. Gonio-spectrometric measurements according to LM79, EN13032-4 and CIE S 025 (option spectroradiometer) Protocolling the pole illuminances for stability monitoring (pole monitoring) Protocolling of the stabilizing process and automatic start of the measurement according to LM79, EN13032-4 and CIE S 025 Controlling the filter wheel of a color measuring camera (option) Data acquisition of external devices (e.g. power analyzer or data logger) Synchronisation of external data acquisition software to the measurement by triggering Batch processing of several measurements Available languages: German, English
