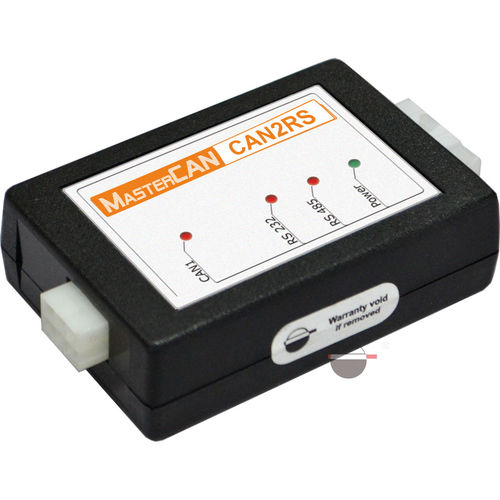

Digital converter MasterCAN CAN2RS

CAN bus to RS-485

are used for data integration from CAN (SAE j1939+S6) interface into RS-485 interface (Modbus RTU). Particular features of the data converters: • configuration of up to 100 slots of input/output data (selection from 10 800+ Parameters of S6 Database); • work with CAN interface in the following modes — active (“request-response”) and secret* (“screening” the bus); • adjustable baudrate via CAN and RS-485 interfaces; • simple and secure connection to wires of CAN-bus* with CANCrocodile / FMSCrocodile contactless readers; • compliance with Units, Database and cabling system S6 Technology; • implementation based on IoT Burger Technology is the reception of ready data for the Telematics system without using any additional devices; • simple mounting, the full set of mounting elements in the mounting set; • power supply from the Vehicle onboard circuit, no additional modules required; • protection from short circuit polarity reversal of the power supply wires; • high-quality technical support and documentation; • conformity with European and national automotive standards.
