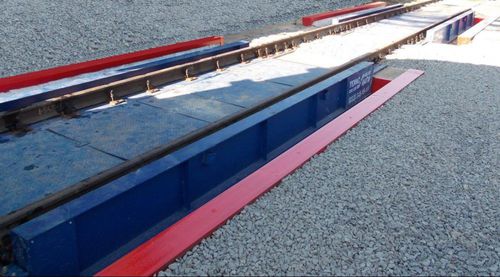

Static railway weighbridge TBB series

steeldynamicconcrete

Railway scales TBB-150 are designed for weighing railway carriages in statics. Railway electronic tensometric scales TBB-150, TBB-200 designed and produced by “Technowagy” Ltd. is meant to be used for static weighing railway carriages with total weight up to 150 or 200 tons. Scales are installed on no electrified no transit station tracks and access tracks 1520 mm or 1435 mm wide, that are not equipped with automatic signalization, centralization and blocking devices. The railway scales consist of two separate platforms connected with rail track section. Scales are placed in a straight horizontal section of railway track at least 65 m long. Model ТВВ … СD scales – are only installed only on access railways, and differ from usual ТВВ … scales in being able to weigh railway carriages in dynamic mode, ie in motion at speeds up to 10 km/h. It is advisable to be used at high rate of traffic, such as quarries, steel plants, concrete plants. Benefits of scales by “Technowagy” Ltd: – the design of load cells and their mounting provides performance stability and high measurement accuracy; – adjustment of weights is performed using enhanced index system of terminal – the “kilogram” mode (d = 1 kg); – calibrationof scales can be carried out independently by the customer when calibration samples available in the presence of state verification officer; – feature ability to determine the longitudinal and transverse displacement of the gravity center of the carriage; – scales provide the possibility of computer accounting of weighing results and output to the computer display and / or printer;
