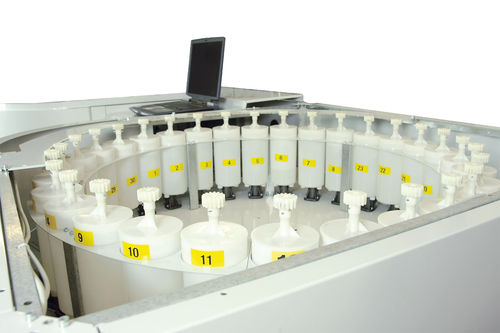

Water dosing dispenser WB 60

gravimetricfor the electronics industryautomatic

TECHNOLOGY & FUNCTIONING WB 60 is a waterborne colors Automatic Dispenser WB 60 has been designed with two main Tinting Bases storage towers. Both towers are connected by a strong structure, that can be used as a work surface for laptop or desktop computer (monitor, keyboard, mouse, etc.) The Software manages the formulae sequential dosing, starting from a possible Binder and then optimizing the following sequence in relation with the position of the components in each of the towers The dispensing mode is gravimetric under electronic scale control The command to open and close the valves is managed by two solenoids, one per tower A special self cleaning system of the valves is automatically activated at the end of each formula dispensing The refilling is facilitate trough top transparent windows. GENERAL FEATURES Dimensions Height: 1384 mm Width: 3053 mm Depth: 1300 mm Canisters capacity Tinting Base canisters: 1,5 lt. Binder canister: 17 lt. Main: 220 Vac to 240 Vac Power: 2,5 KW Main frequency: 50/60 Hz Maximum noise: <65 dB
