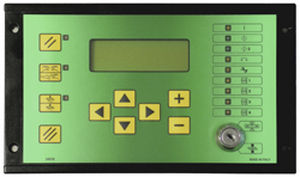

Resistance welding controller TE553

The TE553 is a microprocessor-based welding control unit for resistance welders three phase in direct current. The task of the welding control unit is to manage the welder components, in particular the controlled diodes that carry out the welding current adjustment. The TE553 is a particularly versatile welding control unit as it may be adjusted to different types of welders; it may be installed not only on spot and projection welders but on seam welders too. Moreover, it may work with power adjustment and in constant energy (optional). The number of inlets and outlets may be increased so to better adjust the welding control unit to automatic machines. It is possible to store up to 250 different welding programs, 31 of which are recalled directly from an external device. Each program comprises several programmable parameters that describe the work cycle. In addition to the plain 4-stage welding cycle, the control unit allows the running of welding processes with pre-welding current, post-welding current, slope and pulses. Simplified programming via 6 keys and a backlit alphanumeric LCD. Synchronous control with controlled diodes, phase control current adjustment. Storage of 250 welding programs, 31 recallable from the outside. Up to 25 programmable parameters for each program. Slope, pulses, pre-weld, post-weld functions and adjustment of the welding times in half-periods. Display of the RMS welding current measurement in kA. 2 operating modes: standard and constant energy. Welding current limits.
