Diaphragm valve HM-CP
hydraulicfor controlstop

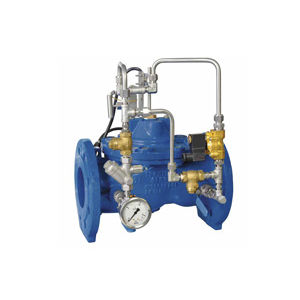

Diaphragm valve - HM-CP - Tecnidro - hydraulic / for control / stop
Diaphragm valve - HM-CP - Tecnidro - hydraulic / for control / stop
Add to favorites
Compare this product


Characteristics

Type
diaphragm
Operation
hydraulic
Function
for control, stop
Media
for water
Body
flange, threaded
Applications
for pipelines, pump
Associated function
reducing, outlet, soft-start, backflow, jumper
Other characteristics
automatic
DN

Min.: 50 mm
(1.969 in)

Max.: 600 mm
(23.622 in)

Pressure

25 bar
(362.6 psi)

Flow rate

Min.: 16 m³/h
(565.03 ft³/h)

Max.: 5,400 m³/h
(190,699.2 ft³/h)

Description

PUMP CONTROL VALVE The valve isolates pumps from the system during pumps starting and stopping to protect pipe lines and pumps itself. The valve is equipped with a control solenoid valve that is switched on at pump starting and is able to fulfill pipe line gradually, reducing pressure rising peaks and allowing soft starting of the pump with closed outlet. The valve controls pump stopping as well, gradually closing before sending a closing signal to the pump. In case of casual pump stop, the valve acts also as an automatic check valve, preventing backflow over the impeller. TYPICAL APPLICATIONS Pumping systems control.
