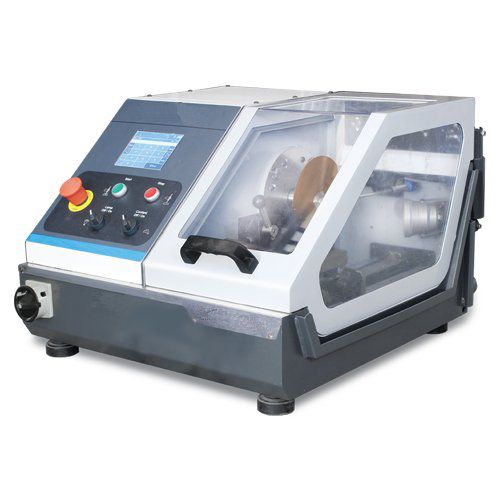

Metallographic cutting machine TEKNIcut HSS

rotary bladefor metalfor plastics

The precision metallographic cutting machine for cutting all kinds of materials with variable spindle speed. The automated Y-motion adds to the precision of the machine. Essential for cutting surface components, shelf and hard applications. Preferred by research laboratories. - Cutting capacity up to 40 mm in diameter - Rotating vise can increase depth of cut - Refrigerant recirculation system - Automatic Y-movement (longitudinal) - Variable speed system 100-4000 rpm - Variable feed rates and length of cut - 1 HP single-phase power: 220V / 50Hz or 110V / 60Hz - Machine size: 810 x 600 x 810 mm (LXBXH) SPECS: - A precision panel saw designed to cut all types of materials with ease - Cutting capacity up to 40 mm - Wheel mounting hub OD -12.7 / 25.4mm - Automatic cutting - Cutting action: automatic Y-movement (longitudinal) - 5.7 ″ advanced color graphic touchscreen - Variable feed speed and cutting length - External recirculation refrigerant system with capacity of 50 liters - 1 HP three-phase motor (750 watts) - Continuously variable speed system 100-4000 rpm - Door limit switch system - X Movement up to 50 mm - The wheel must accommodate a minimum of 3 ″ to a maximum of 8 ″ (wheel diameter) - Electrical: 230 V, 50 Hz (1 + N + E) - Machine size: 810mm x 810mm x 550mm (LxBxH) - Machine color: RAL 9016 boxes, RAL 7016 base and support
