Metallographic cutting machine TEKNICUT PRO X
rotary bladefor metalfor plastics

metallographic cutting machine
metallographic cutting machine
Add to favorites
Compare this product


Characteristics

Technology
rotary blade
Material
for metal, for plastics, for stone
Product handled
sample
Applications
metallographic
Phase
three-phase
Configuration
3-axis
Other characteristics
sectioning

Description

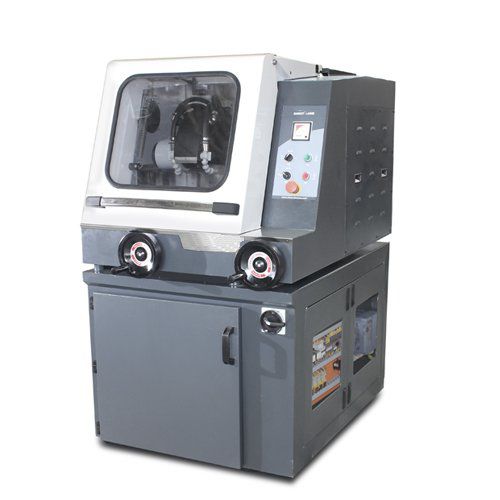

TEKNIcut PRO X Metallographic Cutting Machine Large heavy duty metallographic cutter for sectioning large samples for metallography. It has similar characteristics to the M model, but with greater capacity with Z, Y and X movements. Cutting capacity up to 110mm diameter Powered by 7.5 HP Motor, Three Phase Motor Cut-off wheel diameter 350 mm (14 ") Easy-to-use 3-axis movement (X, Y, Z) Spindle speed 2880 rpm Table size: 400 X 400mm with 8mm T-slot Machine size: 1040mm x 1600mm x 1800mm Left side ventilation (opening) Side opening for longer components Powerful LED light in the cutting chamber for clear illumination of the cutting process. Washing gun To clean the entire cutting area after the cutting operation. Door limit switch The door will lock while the cutting operation is in progress.
