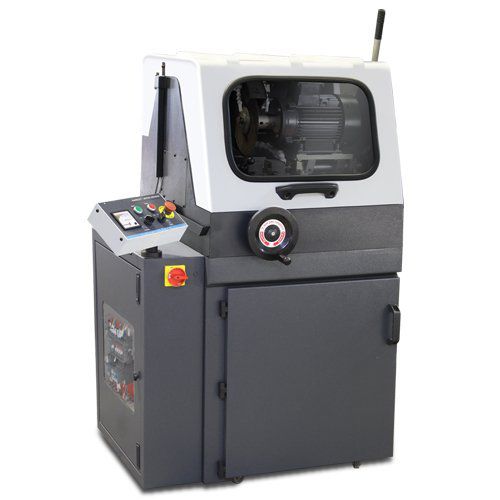

Rotary blade cutting machine TEKNIcut XM

for metalfor plasticsfor stone

Cutting capacity up to 80mm diameter Powered by 5 HP Motor, Three Phase Motor Cut-off wheel diameter 12 "(300 mm) Easy-to-use 3-axis movement (X, Y, Z) Spindle speed 2880 rpm Table size: 260 X 260mm with 8mm T-slot Machine size: 1100mm x 1000mm x 1650mm. A heavy duty floor model general purpose mower. The large space in the cutting area offers flexibility to use a wide variety of accessories. Cutting action possible by lowering the arm (Z movement) and the longitudinal movement of the table (Y axis) through the cutting plane (Y movement). The option of additional lateral movement (X movement) is a bonus. The lockable Z movement wheel position offers additional convenience. Suitable for a variety of applications, including small gears, mid-size car components, and axles. Three-axis movement (X, Y and Z) Table movement X and Y, Z Cutting wheel Vertical movement. Movement stop "Z" We can limit Z movement (drive) Wash jet To clean the entire cutting area after the cutting operation. Door limit switch The door will lock while the cutting operation is in progress.
