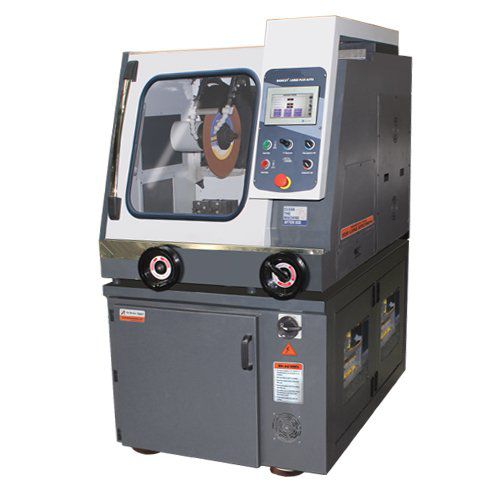

Metallographic cutting machine TEKNICUT PRO L + AUTOrotary bladefor metaltube
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for metal
- Product handled
- tube, bar
- Control type
- with digital assistance
- Applications
- metallographic
- Phase
- three-phase
- Configuration
- 3-axis
- Other characteristics
- automatic, heavy-duty
- Tube diameter
130 mm
(5 in)
Description
Cutting capacity up to 130 mm dia
Powered by Motor 10 HP, 3 phase motor
Cut-off wheel dia 16" (400mm)
3 Axis user friendly movement (X,Y,Z)
Spindle speed 2200 rpm
Table size : 400 X 400 mm with 8 mm T-slot
Machine size: 1340mm X 1600mm X 1800mm
Automatic large plus heavy-duty cutting machine with integral construction. Standard Y automation. Plus cutting for burn free cutting. Preset parameters for consistency.
PLC Touch screen system
Advanc graphical touch screen display with pre set programming and data storage upto 25 programmes
Sliding Door
Left side Vent (Opening)
Side opening for longer components
Powerful LED
Powerful LED light in cutting chamber for clear illumination of Cutting process
Washing jet
To clean the Entire cutting area after cutting operation
