Monobloc wheel V SR SRpolyurethanehandling
Add to favorites
Compare this product
Characteristics
- Type
- monobloc
- Hub material
- polyurethane
- Applications
- handling
- Load capacity
Max.: 3,500 kg
(7,716 lb)Min.: 190 kg
(419 lb)- Diameter
Max.: 400 mm
(15.75 in)Min.: 80 mm
(3.15 in)- Tread width
Max.: 100 mm
(3.94 in)Min.: 25 mm
(0.98 in)
Description

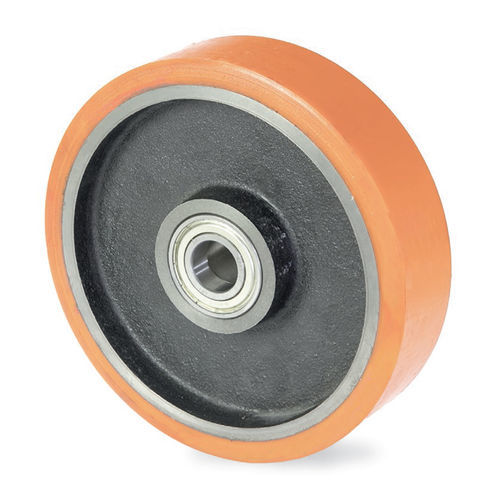

Polyurethane wheel with cast-iron centre.
Wheel with mechanical cast iron hub, covered with cast polyurethane of hardness 95 Shore A. The sliding occurs on two ball bearings housed in specifically shaped casings, which ensure maximum efficiency during handling. The polyurethane layer gives an excellent resistance to impact and abrasion, as well as ensuring the integrity of the flooring even when moving heavy loads.
