Swivel caster V S15 GP
base platehandlingpolyurethane

Swivel caster - V S15 GP - Tecno Ruote Group Srl - base plate / handling / polyurethane
Swivel caster - V S15 GP - Tecno Ruote Group Srl - base plate / handling / polyurethane
Swivel caster - V S15 GP - Tecno Ruote Group Srl - base plate / handling / polyurethane - image - 2
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
base plate
Other characteristics
with ball bearing, handling, polyurethane, pressed steel, cast iron
Load capacity

180 kg, 200 kg, 220 kg, 300 kg, 400 kg
(397 lb, 441 lb, 485 lb, 661 lb, 882 lb)

Wheel diameter

Min.: 80 mm
(3.15 in)

Max.: 250 mm
(9.843 in)

Tread width

Min.: 25 mm
(0.98 in)

Max.: 60 mm
(2.36 in)

Description

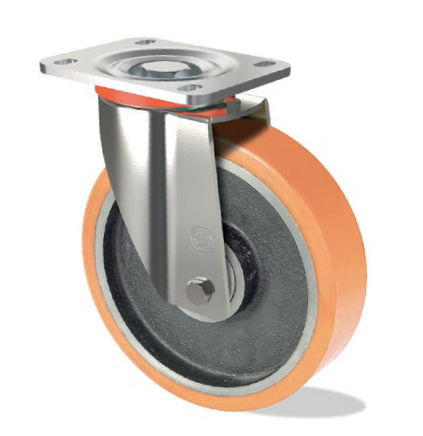

Polyurethane wheel with cast-iron centre. Wheel with mechanical cast iron hub, covered with cast polyurethane of hardness 95 Shore A. The sliding occurs on two ball bearings housed in specifically shaped casings, which ensure maximum efficiency during handling. The polyurethane layer gives an excellent resistance to impact and abrasion, as well as ensuring the integrity of the flooring even when moving heavy loads. Polyurethane wheel with cast-iron centre. Swivel top plate bracket type S10, made of pressed steel, zinc plated, double ball bearing swivel head, dust protection.
