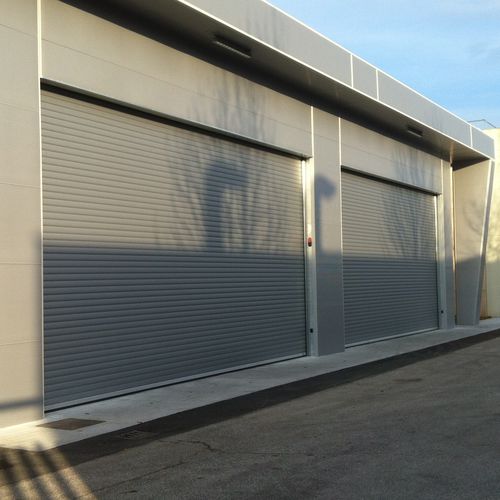

Lift-and-slide shutter Tecno Teck

insulatedindoor

Insulated version standard configuration: Galvanised profiles, miro-profiled on external side with transparent protective covering, “plain” arch-shaped internal side. External rolling available. * Standard RAL colours: (colours corresponding to RAL chart) White Grey RAL 9002 Silver Grey RAL 9006 Traffic White RAL 9016 Sepia Brown RAL 8014 Semi standard: Gentian Blue RAL 5010 Fire Red RAL 3000 Grey Aluminium RAL 9007 Measurements/profile values: Profile width abt. 93,7 mm Profile/m shutter height 10,7 (proven) Profile height: 106 mm Thermal insulation: Thermal conductivity coefficient EN ISO 12567-1 U = 3,5 W/m²k (complete shutter) (shutter dimensions 4000 x 4000 mm) Thickness: 0,4 mm Sound insulation coefficient: RW = 20 dB Available motorisations: Direct drive motor, 400V, 50Hz, IP54 protection, integrated parachute device, emergency hand crank, DEAD MAN control, IP 65, 24 V power tension, pre-wiring, CEE plug IP44 protection. Chain drive motor, 400V, 50Hz, IP54 protection, separate parachute device, emergency hand crank, DEAD MAN control, IP65, 24V power tension, pre-wiring, CEE plug IP44 protection.
