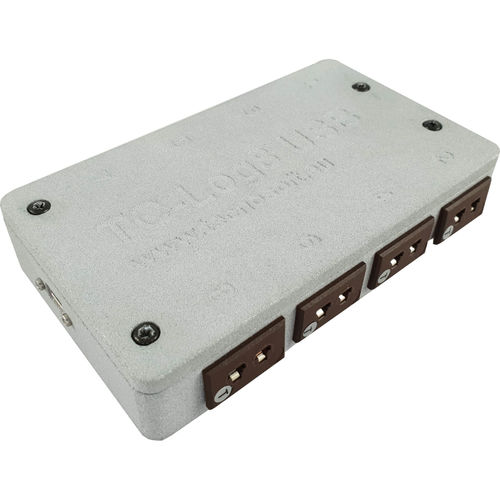

Temperature data-logger TC-Log 8 USB T

USBwithout displayfor food applications

USB 8 channels temperature recorder for T type thermocouples thermocouples Temperature data logging device up to 8 T type thermocouples connectable, resistant up to 130°C. Operative range is from -60°C to 130°C. User replaceable battery. No need of any extra device for PC communication, direct USB connection. Thermocouples not included. Main features • High temperatures resistant • Quick response time • USB direct connection to PC • Reduced size • Real time monitoring if connected to a PC via the USB interface • User calibrable Plus • Easy to use • You can use your own thermocouples and calibrate it with them • Real time The system System components: • TC-Log 8 USB T • Thermocouples • TC-Log software Dimensions 132 h X 80 X 25 (mm) Weight 190 g Temperature range -60°C ÷ +130°C Materials Alumide, ABS Number of channels 8 Mounted connectors T Available thermocouples T Temperature resolution 0,1 °C Temperature accuracy For logger only, sensors excluded: ± 0,2 °C with Accredia traceable certificate (calibration at -40/25/125°C) Temperature accuracy For logger only, sensors excluded: ± 0,2 °C with Accredia traceable certificate (calibration at room temperature) Temperature accuracy For logger only, sensors excluded: +/- 0,5°C range 0°C ÷ 75°C; +/-1°C range -40°C ÷ 0°C and 75°C ÷ 125°C without calibration Stability time Internal stability after a 50°C shock: 20 minutes Memory (n. of acquisitions) 104.855 with only 1 channel, 16.383 with all 8 channels (for complete information check proper document) Acquisition step From 1 every second up, with 1 second steps Battery life +4.320.000 acquisitions at 1 second step continuously (calculated time @25°C.
