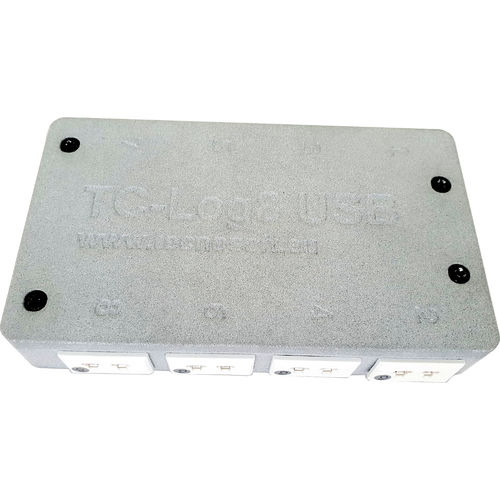

Temperature data-logger TC-Log 8 USB

USBwithout displayfor thermocouples

USB 8 channels temperature recorder for thermocouples Temperature data loggers for thermocouples up to 8 channels, resistant up to 130°C, with universal connectors for thermocouples. It is possible to connect any type of thermocouple, considering that the connection between the connectors and the circuit is in copper and not with wires of the specific material of the thermocouple itself. Operative range is from -60°C to 130°C. User replaceable battery. Does not need of any connection bay, it has a direct USB connection. Thermocouples not included. Main features • High temperatures resistant • Quick response time • USB direct connection to PC • Reduced size • Real time monitoring if connected to a PC via the USB interface • User calibrable Plus • Easy to use • You can use your own thermocouples and calibrate it with them • Real time The system System components: • TC-Log 8 USB • Thermocouples • TC-Log software Dimensions 132 h X 80 X 25 (mm) Weight 190 g Temperature range -60°C ÷ +130°C Materials Alumide, ABS Number of channels 8 Mounted connectors Universal Available thermocouples K, J, T, N, E, R, S, B, G, C, D Temperature resolution 0,1 °C Temperature accuracy For logger only, sensors excluded: ± 0,2 °C with Accredia traceable certificate (calibration at -40/25/125°C) Temperature accuracy For logger only, sensors excluded: ± 0,2 °C with Accredia traceable certificate (calibration at room temperature) Temperature accuracy For logger only, sensors excluded: +/- 0,5°C range 0°C ÷ 75°C; +/-1°C range -40°C ÷ 0°C and 75°C ÷ 125°C without calibration Stability time Internal stability after a 50°C shock: 20 minutes Memory (n. of acquisitions) 104.
