3-phase torque motor QTL 290 Series
synchronous480 V680V

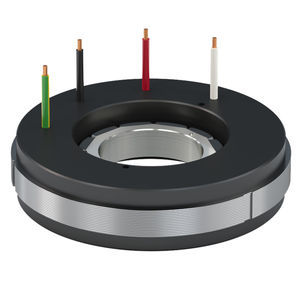

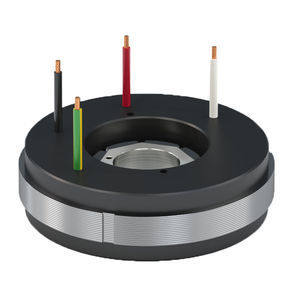

3-phase torque motor - QTL 290 Series - Tecnotion - synchronous / 480 V / 680V
3-phase torque motor - QTL 290 Series - Tecnotion - synchronous / 480 V / 680V
3-phase torque motor - QTL 290 Series - Tecnotion - synchronous / 480 V / 680V - image - 2
Add to favorites
Compare this product

Go to the Tecnotion website for more information

Characteristics

AC/DC
3-phase
Type
synchronous
Voltage
480 V, 680V
Configuration
permanent magnet, frameless
Number of poles
multipole
Applications
for industrial applications, packaging machine, for cutting machine
Other characteristics
direct-drive, high-torque, low-speed
Power

948 W, 1,410 W, 1,864 W
(1.289 hp, 1.917 hp, 2.534 hp)

Intensity

7.14 A, 7.54 A, 7.75 A

Torque

140 Nm, 222 Nm, 305 Nm
(103.2587 ft.lb, 163.7388 ft.lb, 224.9565 ft.lb)

Rotational speed

130 rpm, 189 rpm, 306 rpm
(816.81 rad.min-1, 1,187.52 rad.min-1, 1,922.65 rad.min-1)

Diameter

290 mm
(11.42 in)

Description

The QTL 290 expands on the QTL 210 design to meet even higher torque demands. In combination with low induction values and fast response time this series allows for highly dynamic movements. It makes the series ideal for usage in packaging and laser cutting machinery.
