Automatic packing machine EVD-A-20

vacuumdouble-chambermeat

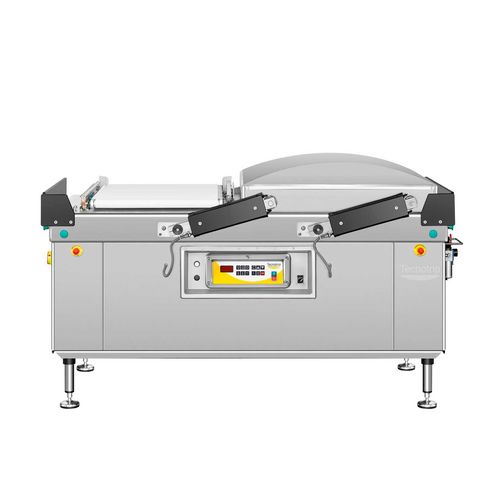

EVD-A-20 Automatic double chamber vacuum packer EVD-A-20 Automatic double chamber vacuum packer, ideal for high production and suitable for large or small packs. CHARACTERISTICS Two sealing bars of 830 mm in each chamber. Bench, lid and vacuum chamber in stainless steel. Easy maintenance and cleaning. Optional installation for gas injection. Vacuum packer equipped with Busch pump 250 m3/h. Possibility of pump of 300 m3/h. Vacuum chamber dimensions: 955x895x250 mm. Digital control system. Manufacture according to CE regulations. Synchronisable with the conveyor belt, the RET-A-4 and RET-A-4-11 shrinking tanks and the TSA dryer. Ideal for fully automatic vacuum packaging lines, as it is fully synchronized with conveyor belt and shrinking tanks : With the elevation of the conveyor belt integrated into each chamber, it will be selected whether or not products should be automatically transported out of the machine. The conveyor belt, synchronized with the packer, allows products to be moved in to the shrink tank. A cell located at the entrance of the tank, detects the passage of the packaged product and iniciate the shrinking cycle: entry, immersion, draning and ejection of the product : At the end of the tank, it is possible to incorporate a bag dryer mod.TSA Features Easy cleaning Manufacture according to CE standard Soldering independent regulation Equipment Pump: 200/300 m3/h Digital programmer: CD system Sealing: SS, SC, SD Gas Information about the digital programmer 30 programs to select Vacuum control by sensor Supplementary vacuum function Progressive vacuum program Gas control by sensor Progressive air inlet “SOFT-AIR” Vacuum verification program
