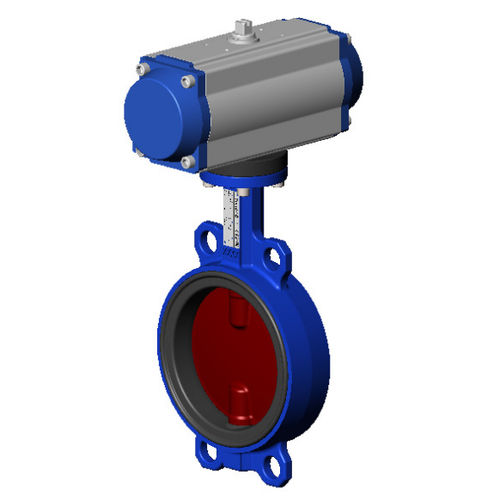

Butterfly valve Tecfly VPI-N03, VPI-N07 seriespneumatically-operatedfor waterfor compressed air
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- pneumatically-operated
- Media
- for water, for compressed air, for acids
- Body
- wafer, cast iron
- Other characteristics
- single-acting, double-acting
- DN
Max.: 300 mm
(11.811 in)Min.: 40 mm
(1.575 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 130 °C
(266 °F)Min.: -15 °C
(5 °F)
Description
Body material
Ductile iron GGG50
PN (end)
PN10/16-ASA150-JIS10K
Contact sealing
Heat EPDM
Disc material
Ductile iron GGG50 coated
Connection
between flanges
Operating system
Double acting pneumatic actuator
