Voltage regulator module DP-35 Osciloscope differential probe

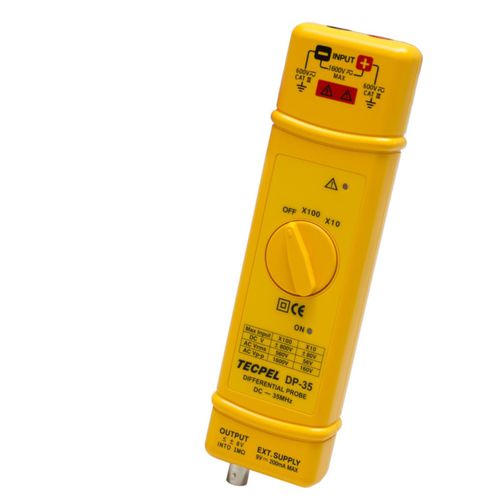

35MHz Oscilloscope Differential Probe 35MHz Oscilloscope Differential Probe Product ID: DP-35 DP-35 ( 35MHz /1600 Vp-p / >=10mV ) DP-35 35 MHz Differential Probes for Oscilloscopes Separating Design(Standard No.114205) Convenient & Durable. SPECIFICATIONS: (1) Bandwidth: DC - to 35 MHz (-3 dB) for x 100 DC - to 25 MHz (for attenuation x 10) (2) Attenuation: x 10, or x 100 (3) Accuracy: +/- 2% (4) Voltage Input Ranges (DC + AC peak to peak): ≦ 160 Vp-p for x 10, (i.e about 56 V RMS or ± 80 V DC) ≦ 1600 Vp-p for x 100, (i.e about 560 V RMS or ± 800 V DC) (5) Permitted Max Input Voltage Max differential voltage: 1600 V (DC + AC peak to peak) Max voltage between each input terminal and ground: 600 V RMS (6) Input Impedance: Differential: 9 MΩ // 1.7 pF Between terminals and ground: 4.5 MΩ // 3.4 pF (7) Output: ± 8.0 V (8) Output Impedance: 50 Ω (9) Rise Time: 10 ns for x 100; 14 ns for x 10 (10) Rejection Rate on Common Mode: 60 Hz: ＞80 dB ; 100 Hz: ＞60 dB ; 1 MHz: ＞50 dB (11) Power Supply: External 9 V DC power supply. (12) Consumption: 200 mA about (9 V DC)
