Voltage probe DP-100
for oscilloscopeshandheld

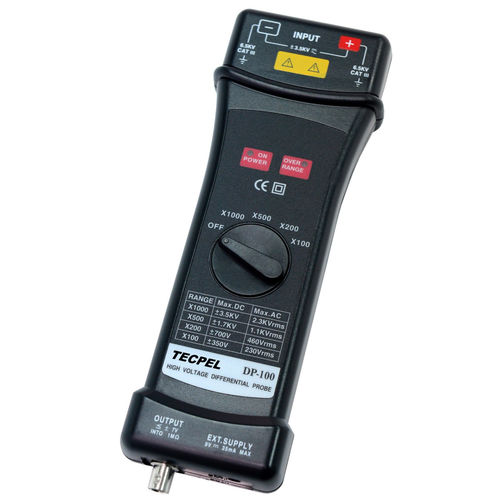

Voltage probe - DP-100 - Tecpel  Co., Ltd. - for oscilloscopes / handheld
Voltage probe - DP-100 - Tecpel  Co., Ltd. - for oscilloscopes / handheld
Voltage probe - DP-100 - Tecpel  Co., Ltd. - for oscilloscopes / handheld - image - 2
Voltage probe - DP-100 - Tecpel  Co., Ltd. - for oscilloscopes / handheld - image - 3
Voltage probe - DP-100 - Tecpel  Co., Ltd. - for oscilloscopes / handheld - image - 4
Add to favorites
Compare this product


Characteristics

Measured value
voltage
Applications
for oscilloscopes
Other characteristics
handheld

Description

TECPEL DP100 Oscilloscope 100MHz differential probe Product ID: DP-100 Differential Probe Model: DP-100 ( 6.5KVp-p / 100MHz ) The DP-100 Differential probe provides a safety means for measuring differential voltage to all models of oscilloscope. The DP-100 coverts the high differential voltage (<=7000 peak) into a low voltage (<=7.0v, with reference to the earth) and display on the oscilloscopes. The DP-100 is designed to operate with the 1M Ohm impedance oscilloscope. When combine with the 50 Ohm load, the attenuation will be 2 times. We recommend to use Tecpel PL-10 with DP-100 to expand the measuring with Digital multimeter (DMM) to observe more accurate measurement. The accuracy of oscilloscope is 3% and the DMM is less than 1%. Note: If you connect DP-100 to the DMM without PL-10 the accuracy will be higher than 10%

VIDEO

Catalogs

No catalogs are available for this product.

See all of Tecpel Co., Ltd.‘s catalogs
