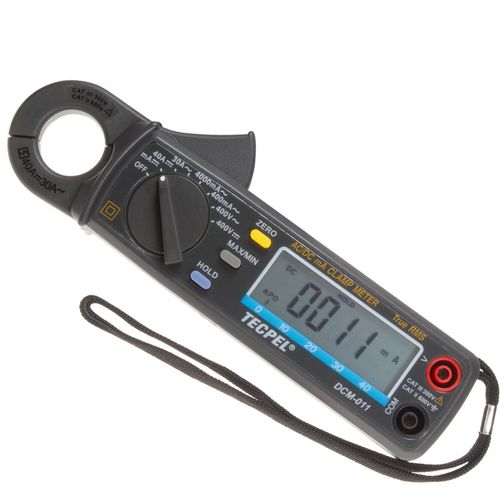

Digital clamp multimeter DCM-011
portablecat IIIfrequency

Digital clamp multimeter - DCM-011 - Tecpel  Co., Ltd. - portable / cat III / frequency
Digital clamp multimeter - DCM-011 - Tecpel  Co., Ltd. - portable / cat III / frequency
Digital clamp multimeter - DCM-011 - Tecpel  Co., Ltd. - portable / cat III / frequency - image - 2
Digital clamp multimeter - DCM-011 - Tecpel  Co., Ltd. - portable / cat III / frequency - image - 3
Digital clamp multimeter - DCM-011 - Tecpel  Co., Ltd. - portable / cat III / frequency - image - 4
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Safety rating
cat III
Additional features
frequency
Other characteristics
true RMS
Max DC voltage

400 V

Max AC voltage

400 V

Max DC current

4 A, 30 A, 40 A

Max AC current

30 A

Max DC voltage resolution

0.1 V

Max AC voltage resolution

0.1 V

Max DC current resolution

1 mA

Max AC current resolution

0.1 mA

DC voltage precision

1 %

AC voltage precision

1.5 %

DC current precision

2 %

AC current precision

1.5 %

Weight

190 g
(6.7 oz)

Description

TECPEL DCM-011 is a high performance, accurate and easy to use measuring digital hook meter from TECPEL, designed for measuring AC and DC currents and voltages, made in Taiwan, with guaranteed quality. It features True RMS AC current and voltage measurements, clear display captions, and an easy-to-read measurement display. The double-insulated design provides a higher level of safety for the user, reducing possible risks during operation. The error specification is ±1.5% + 4 for AC and ±1% + 2 for DC, providing excellent reliability. The resolution is 1mA for DC and 0.1mA for AC, allowing you to easily read accurate measurement results. TECPEL DCM-011 digital hook meter is your best choice for AC and DC current and voltage measurement, which is not only accurate and reliable but also has high safety and ease of use. Product Introduction TECPEL DCM-011 is a high performance, accurate and easy to use measuring digital hook meter from TECPEL. The double-insulated design provides a higher level of safety for the user, reducing possible risks during operation. The resolution is 1mA for DC and 0.1mA for AC, allowing you to easily read accurate measurement results.
