Analog oscilloscope VDS-6102A

bench-top2-channelUSB

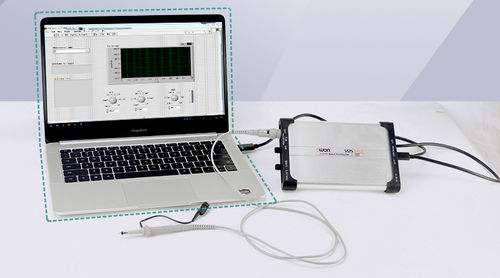

OWON new USB interface 100MHZ/14bit high-resolution dual-channel oscilloscope VDS6102A *Dual-channel ultra-thin design *Maximum storage depth 10M *Maximum 100MHz bandwidth, up to 1GSa/s real-time sampling rate *Supports Windows/Linux/Android/Apple platform secondary development Measurement Specification Model : VDS 6102A Bandwith : 100MHz Channel : 2 analog channel + signal source output channel Instant sampling rate : up to 1GSa/s Rise Time : (typical ≤3.5 ns on BNC) Time base range : 5ns/div～100s/div, step by 1～2～5 Sampling mode: : normal sampling, peak detection, average Storage depth : 10M Input coupling : DC, AC, ground Input impedance : 1MΩ±2%, in parallel with 15pF±5pF Time base accuracy : ±25ppm Time interval (△T) Measurement accuracy : Single: ±(1 sampling interval time+100ppm×reading+0.6ns), >16 average values: ±(1 sampling interval time+100ppm×reading+0.4ns) Vertical sensitivity : 2mV/div～5V/div Vertical Resolution : 14bits Maximum input voltage : 40V Peak（DC + AC Peak ） Bandwidth limited : to 20 MHz, full bandwidth Probe attenuation coefficient : 1X, 10X, 100X, 1000X Channel-to-channel isolation : 50Hz: 100: 1, 10MHz: 40: 1 Waveform Interpolation : Sin(x)/x ±2 V (2 mV/div – 50 mV/div); Displacement range : ±20 V (100 mV/div – 500 mV/div); ±40 V (1 V/div – 5 V/div) Single bandwidth low frequency response : Full bandwidth low (AC coupled, -3Db) ≥5Hz (on BNC) DC gain accuracy : ±2% Trigger Type Signal System and Line/Field Frequency (Video Trigger Type) : Edge trigger, pulse width trigger, video trigger, slope trigger Trigger mode : automatic, normal, single Cursor measurement : Voltage difference between cursors (△V), time difference between cursors (△T)
