Product Introduction

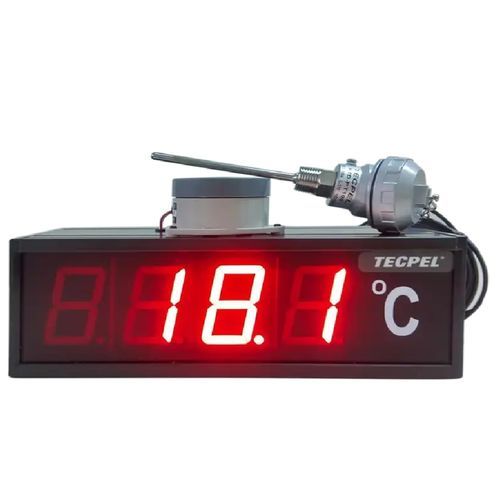

TRH-3306C-PT100 is a large-scale temperature display board with a PT100 temperature sensing line which can display the temperature value in the warehouse outside the warehouse. It is suitable for environmental monitoring in warehouses, workshops, archives and clean rooms.
Measurement Specification
Digits Display : 3 digits
Temperature Range : 0~99.9°C or-19.9~80.0°C
Resolution : 0.1
Reacting Time : 3times / Sec. or 0.5 times /Sec.
Product Features
Standard Input Signal : PT-100
Voltage Output : DC24V / 100mA
Accuracy Correction : External Zero/ Span adjustment
User Compensation : Digital Compensation
Figure Display : Red LED Light
Figure Size : 2.3 inch (H57mm x L32mm)
