3-phase electrical networks analyzer DW-6093

powerpower factorvoltage

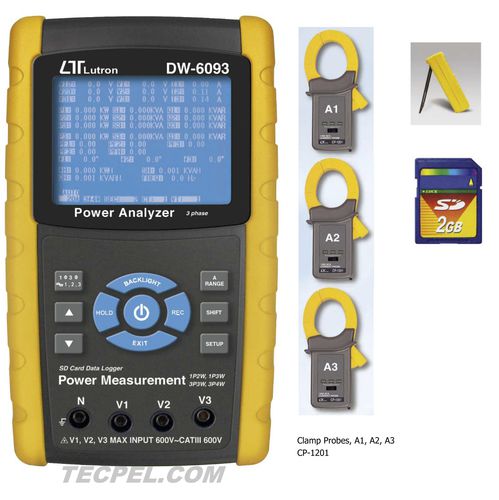

Product Introduction The DW-6093 is a three-phase power analyzer manufactured by Lutron Corporation. It can measure three-phase voltage, current, power, power factor, frequency, harmonics, electric energy and other power parameters. The main function Measure three-phase voltage, current, power, power factor, frequency, harmonics, electric energy and other power parameters. Measurement data can be saved to SD card and downloaded to Excel for analysis. Equipped with multiple measurement modes, including instantaneous, average, peak, RMS, etc. Can be connected to a computer for remote monitoring Main specifications Voltage measurement range: 10 ACV to 600 ACV Current measurement range: 0.2 ACA to 1200 ACA Power measurement range: 0.01 kW to 9999 kW Power factor measurement range: 0.00 to 1.00 Frequency measurement range: 45 Hz to 65 Hz Harmonic measurement range: 2nd to 49th harmonic Electric energy measurement range: 0.001 kWh to 999999 kWh Application scope DW-6093 is suitable for a variety of power applications including:
