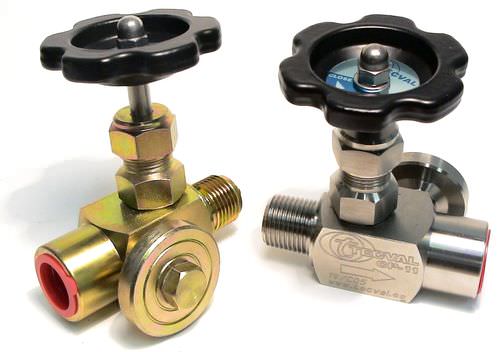

Needle valve CP-11manualshut-offfor seawater
Add to favorites
Compare this product
Characteristics
- Type
- needle
- Operation
- manual
- Function
- shut-off
- Media
- for seawater
- Body
- male-female
- Other characteristics
- high-pressure, high-temperature
- DN
Min.: 0.25 in
Max.: 0.5 in
- Pressure
Min.: 0 bar
(0 psi)Max.: 420 bar
(6,091.6 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 400 °C
(752 °F)
Description
The TECVAL CP-11 Needle Valve with Bridle for Pattern (MxF) boasts a unique design, having a bridle for pattern manometer and a backseat for free packing change in service. With a pressure capacity of up to 420 bar (6000 PSI), it can handle temperatures as high as 400ºC, aided further by the addition of grafoil packing. The materials used in its construction include brass, carbon steel, and Stainless Steel AISI-316, particularly its stem. It features male-female connections and metal-to-metal shut-off, and also offer easy packing external adjustment.
The CP-11 is 100% tested and comes with PTFE packing.
Catalogs
No catalogs are available for this product.
See all of TECVAL, S.L.‘s catalogs
