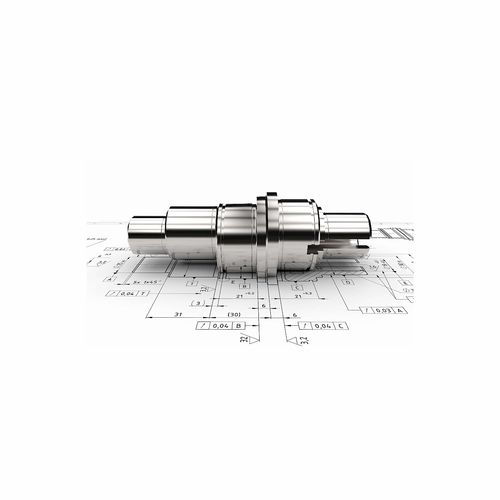

Interface software MDESIGN shaft

designdatabasecalculation

MDESIGN shaft allows you to design, calculate and optimize shafts in accordance with the current norms and standards. The benefits of MDESIGN shaft at a glance: Calculation of strength in accordance with DIN 743 Reliable interpretation of the results thanks to many output charts Configurable calculation report with a click Extended scope of calculation compared to MDESIGN mechanical Seamless import of 3D-CAD shaft models Possible use of internal material data Immediate applicability thanks to the intuitive user face A rapidly established construction environment The tried and tested MDESIGN user interface helps you to establish the constructive framework conditions of your use case in an intuitive and effective manner. Choose the desired verification method (static or dynamic), establish the geometry of the shaft with the aid of the graphic assistant (2D & 3D) and find all the necessary information on the type of load in a short space of time thanks to context-sensitive text aids. Important material properties (e.g. tensile strength, yield stress, young´s modulus, shear modulus) according to DIN 743 part 3 can be found in the integrated MDESIGN database. But internal materials can also be added easily through the database and are available directly.
