Calculation software MDESIGN LVR/LVRplanet

architecture

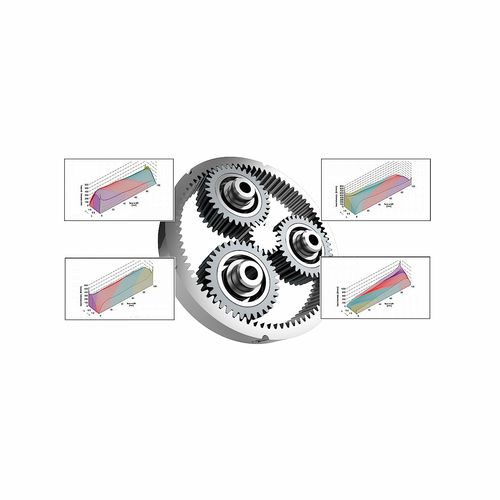

Load distribution calculations for involute spur gears can be performed with MDESIGN LVR. Calculation of the load distribution is done using the width of the flank and the direction of engagement. The results of the calculation are presented graphically and can be displayed for both the individual contacts and the contacts as a whole. The result of the load distribution calculation as the ratio of maximum to average strain on the area of contact can be documented quickly and reliably. In addition, all results from the geometry calculation (DIN 3960) and the service life calculation (DIN 3990) are displayed. Even complex applications are readily usable with MDESIGN Complex problems which arise for optimisation of the details must also be dealt with using a modern, user-friendly system. The MDESIGN architecture ensures that this very requirement is met. The necessary inputs are systematically broken down by processing groups. Thanks to the status bar, which processing groups tasks have already been defined for is clearly visible. This architecture ensures practice-oriented user guidance right through to definite production of all documents.
