Temperature switch GM series

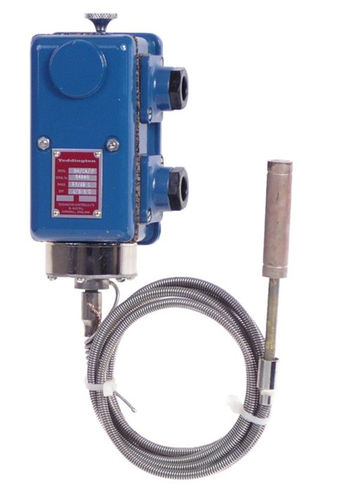

GM Heavy Duty Temperature Switch The GM is a heavy duty Temperature switch which is designed for use where high mechanical strength, immunity to vibration and functional reliability is essential, even after periods of non-action. Electrical connections are single pole double throw switches, which terminate on 4.8mm x 0.5mm quick connect terminals. Switch contacts are rated at 15 Amps at 240VAC, and 10 RAmps at 24VDC. Bulb length is 63.5mm. All versions come with armoured capillary. Capillary lengths are available in multiples 1.5m.
