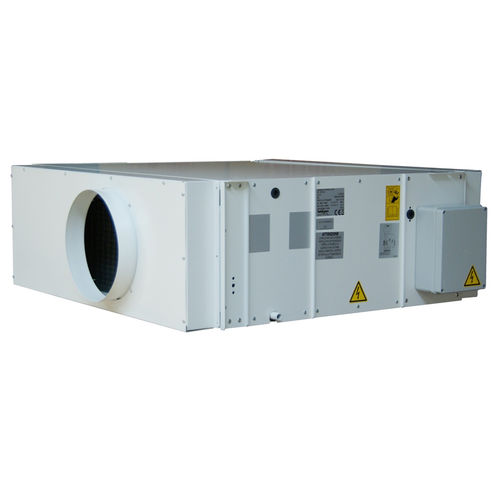

Refrigerant dehumidifier DTF66

airfor swimming pool

The dehumidifier TEDDINGTON DTF66 have been specifically developed for private domestic swimming pools and spas. Description : Extra thin 600 m³/h ducted air dehumidifier - DTF66 Humid air from the swimming pool hall is drawn into the dehumidifier by its integral fan. When passing through the evaporator the air is cooled down to below dew point and water vapour is condensed into water that is drained away. The now dry air is then passed over the condenser coil where the air is heated and returned to the pool hall. Having passed through the dehumidifier the air temperature is approximately 5°C higher than before. The unit is fully automated and near silent in operation. The unit is easily maintenance by open the cabinet door to clean the filter. General Characteristics Air filter - yes Manufacturer warrantly - 2 years Air flow - 600 m³/h Electrical supply - 230 V (Ph+N) Power rating - 840 W Dehumidification at 30°C - 80% R.H. - 52 L/day Dehumidification at 28°C - 60% R.H. - 30 L/day Dehumidification at 20°C - 60% R.H. - 18 L/day Dehumidification at 15°C - 60% R.H. - 11 L/day Dehumidification at 10°C - 70% R.H. - 11 L/day Dehumidification at 10°C - 60% R.H. - 8 L/day
