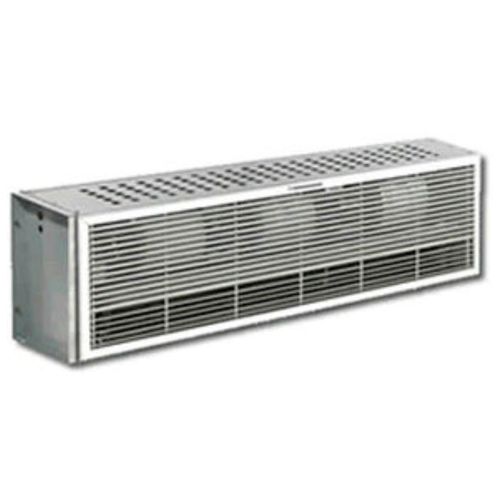

Hot air curtain PHV1500ERhorizontalcommercialwith electric heating
Add to favorites
Compare this product
Characteristics
- Temperature level
- hot
- Mounting
- horizontal
- Applications
- commercial
- Other characteristics
- with electric heating
Description
Electric Heated Air Curtain - recessed TEDDINGTON
PHV1500ER
Description : Electric Heated Air Curtain - recessed - PHV1500ER
Safety thermal Operated Cut-Out.
Supplied with a remote switch unit allowing fan speeds and heat settings.
General Characteristics
Overall length - 1650 mm
Air flow length - 1500 mm
Max. mounting height - 3.75 m
Height - 296 mm
Depth - 436 mm
Grille dimensions - 1690 x 476 mm
Motor power - 370 W
Noise level - 53/60 dB (A)
Fan speeds Nos. - 3
Max. air velocity - 11 m/s
Air velocity 1 - 8 m/s
Max air volume - 3840 m³/h
Air volume 1 - 3300 m³/h
Supply - three phase 380/415 V 3N~
Max input - 26.7 A per phase
Weight - 57 kg
Mounting - recessed
