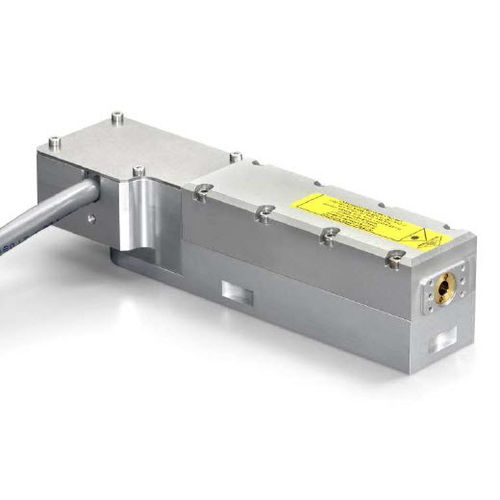

Q-switched laser head STG-03E-1x0short-pulsetriggeredsolid-state
Add to favorites
Compare this product
Characteristics
- Operational mode
- Q-switched, short-pulse, triggered
- Technology
- solid-state
- Spectrum
- green, UV
- Applications
- instrumentation, for Raman spectroscopy, LIDAR
- Other characteristics
- compact, sealed, high-performance, single longitudinal mode, air-cooled, high-power, Nd:YAG
- Power
0.012 W, 6,000 W
- Wavelength
532 nm
Description
The STG-03E is a triggered Microchip Series laser. It produces 1064nm pulses which are directly generated from the diode pumped passively Q-switched Nd:YAG microchip engine. A second harmonic generation stage produces the 532 nm radiation with a very good beam quality and lifetime. Pulses can be controlled individually up to 4 kHz. The laser is single longitudinal mode.
Microchip lasers are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while keeping constant operating parameters.
KEY FEATURES
> Family: MicroChip
> Energy/Pulse: 3 µJ
> Repetition rate: 4 kHz
> Triggered: yes
> Single frequency: yes
> Linewidth: 0.8 pm
> Pulse duration: 500 ps
> Package: SNxII
