- Metrology - Laboratory
- Optical Component
- Pulsed laser head
- TEEM PHOTONICS

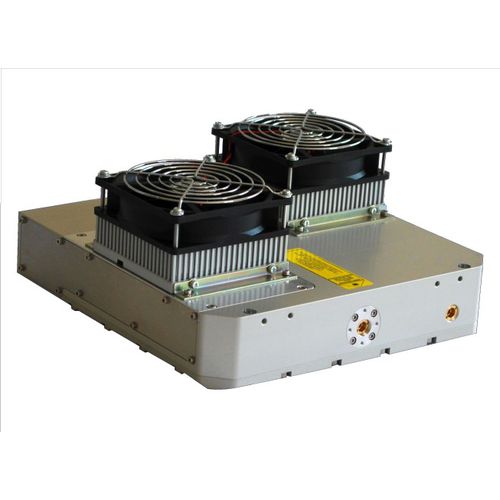

Short-pulse laser head ANP-20E-000fiberinfraredinstrumentation
Add to favorites
Compare this product
Characteristics
- Operational mode
- short-pulse
- Technology
- fiber
- Spectrum
- infrared
- Applications
- instrumentation, for Raman spectroscopy, for materials processing, for micro-machining, LIDAR
- Other characteristics
- compact, high-repetition rate, sealed, medium-power, air-cooled
- Power
1.75 W, 38,000 W
- Wavelength
1,064 nm
Description
The ANP-20E amplified laser is part of the new compact PicoOne laser platform. Based on a microchip seeder and an efficient MOFA (Master Oscillator Fiber Amplifier) amplification stage, this lasers produces 650 ps pulses of 1064 nm light at up to 100 kHz with an average power reaching 1.75 watt. The laser operates with a single emission frequency and produces a nearly Gaussian beam output.
KEY FEATURES
> Family: PicoOne
> Energy/Pulse: 25 µJ
> Repetition rate: 70 kHz
> Triggered: no
> Single frequency: yes
> Linewidth: 2.8 pm
> Pulse duration: 650 ps
> Package: ANx
Catalogs
ANx PicoOne Laser Series
5 Pages
