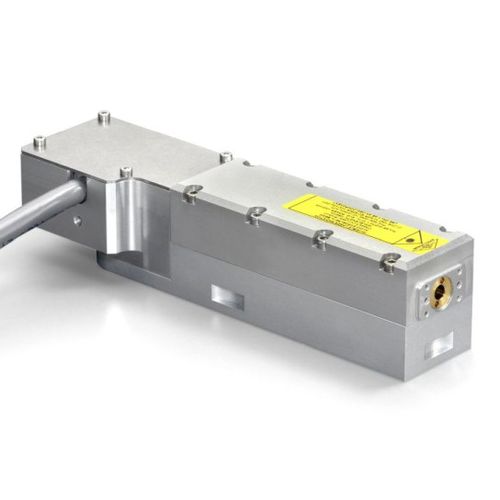

Q-switched laser head SNG-100P-100

solid-stategreeninstrumentation

The SNG-100P was developped to extend the limits of the SNG-20F version. Its special design enables to double the average power while preserving the lifetime.The SNG-100P is part of the more advanced generations of Microchip Series designed for higher average power. This laser first produces 1064nm pulses which are directly generated from the diode pumped passively Q-switched Nd:YAG microchip engine. A second harmonic generation stage produces the 532 nm radiation with a very good beam quality and lifetime. The SNG-100P excels in UAV Lidar and PCB repair applications due to its compact, light weight format and good reliability. Microchip lasers are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while keeping constant operating parameters. KEY FEATURES > Family: MicroChip > Energy/Pulse: 5 µJ > Repetition rate: 20 kHz > Triggered: no > Single frequency: no > Pulse duration: 850 ps > Package: SNxII
