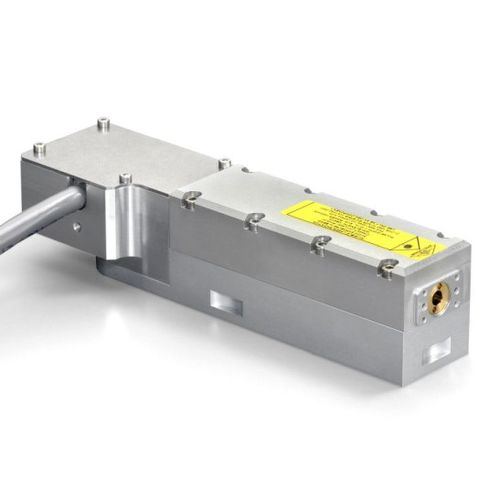

High-performance laser head SNG-50F-100Q-switchedshort-pulsesolid-state
Add to favorites
Compare this product
Characteristics
- Operational mode
- Q-switched, short-pulse
- Technology
- solid-state
- Spectrum
- green
- Applications
- instrumentation, for Raman spectroscopy, for materials processing, for semiconductors, marking, LIDAR, high-power
- Other characteristics
- compact, high-performance, air-cooled, high-power, Nd:YAG, diode-pumped
- Power
0.043 W, 2,000 W
- Wavelength
532 nm
Description
The SNG-50F was developed to extend the limits of the SNG-20F version. Its special design enables a 3x higher average power of 150 mW and a shorter pulse duration..The SNG-50F is part of the more advanced generations of Microchip Series designed for higher average power. This laser first produces 1064nm pulses which are directly generated from the diode pumped passively Q-switched Nd:YAG microchip engine. A second harmonic generation stage produces the 532 nm radiation with a very good beam quality and lifetime.
The SNG-50F excels in UAV Lidar and PCB repair applications due to its compact, light weight format and good reliability.
Microchip lasers are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while keeping constant operating parameters.
KEY FEATURES
> Family: MicroChip
> Energy/Pulse: 1.25 µJ
> Repetition rate: 50 kHz
> Triggered: no
> Single frequency: no
> Pulse duration: 650 ps
> Package: SNxII
